Difficulty: Intermediate

How to strip paint (chemical method)

Sometimes you'll come across a perfectly acceptable second-hand guitar that is suffering from an awful paintjob. These are excellent candidates for snapping up cheaply to give them the finish they deserve!

Here are the basic tools you will need to get this job done. On the right are a few that aren't necessary but they do come in handy when working on this type of stripping project!

chemL.thumb.JPG.990f365173f923b230b76a28chem2.thumb.JPG.b90d3d9e777768940f68df7bchem1.thumb.JPG.2a199439c08d2e9e9228162b



Here is why this body is a very good candidate for using a chemical stripper. It has already been refinished by somebody else. Often that can be the case when you're buying second-hand out of a pawn shop or off an Internet auction. These are often really good deals too. Don't be surprised if you run into body imperfections when stripping one that has already been refinished. It is very common and we will deal with how to take care of those issues in another tutorial.

chem3.thumb.JPG.30db512b9767269e89443f25



If the body has a factory finish, it might not always be an ideal candidate for chemical stripping. Generally the modern paints used in factories are near bullet-proof after curing, and even when you get the top layers off you may well still have an epoxy sealant to deal with. If you want to get through to the wood itself, either strip as much off using this chemical method as possible and then move onto sanding or just sand through the lot. If you're just wanting to repaint the body, stripping the original paint down to an original sealant is a good thing - the factory work is usually a great base to work from!

OK let's get started. Wearing your gloves lay the body down on your newspapers and start to paint the chemical stripper over that one side with your disposable brush. We're only doing one side at a time. You need to have a stack of newspaper under your body - you will change it out for every action that you take along this process. Since the grain of the wood in guitar bodies runs from top to bottom and not across, spread the stripper in this direction only. Paint it on working from one end across to the other rather than using a back and forth motion. This ensures that stripper that has already gone to work on the paint isn't being spread around onto fresh areas where it will be less effective. Some of the stripper will run over the sides - this isn't a bad thing since it will help loosen up the paint for when you get to that. Don't worry about it too much, but don't push lots of stripper over the sides as it will just fall off and go to waste.

chem4.thumb.JPG.9e3a4640c33de662f3117753



Next comes the most boring part! Cover the face of the guitar you have applied the stripper to with Saran wrap, and just let the body sit coated in stripper for at least 15-20 minutes or whatever the instructions on your product recommends. Go watch TV or listen to the radio - just give the chemical stripper time to do it's job. Don't leave it to sit for an excessive amount of time as it can dry up, become crusty and more difficult to remove than needs be.

chem5.thumb.JPG.b413471aa3f34f4cc8fa360a



You may have noticed there is a glass bowl sitting beside the guitar. I used this to pour the stripper into as I am brushing it on to the body instead of pouring directly on. You will get less contaminated stripper if you do the work in sections at a time. It is also a great place to set your brush down and keep it wet while your waiting on the paint to separate from the wood.

chem6.thumb.JPG.2c322e853b73bc2a45a68a88



After you have waited for the required time you can take a plastic scraper and start to lift the paint up off the body, as pictured on the left below. Having two scrapers is useful so that you can remove the junk off the first scraper using your second. Bear in mind that many chemical strippers will soften and deteriorate rubber, so don't use a rubber squeegee or scraper! Metal scrapers risk gouging the wood, so stick to plastic.

chem7.thumb.JPG.da32c91fbfacc437ed52732e



Be sure to work in the same direction that you spread out the stripper (with the grain of the wood), never against it by going side to side. The simple reason for this is you have a smaller chance of damaging the wood surface and you won't be pushing any of the paint back down into the grain.

chem8.thumb.JPG.6c93654067d0045d632ac723



Now that you have scraped as much paint off as you can, go ahead and re-coat that same surface with another coat of stripper same procedure as the first time. You can let it sit for less time than you did before since it should already be fairly well-coated with the old stripper, which just needs a little "push" from a fresh application. After you have finished giving your body the second coat you can clean off your scraper(s) and paint brush, getting rid of nasty and hard paint debris that doesn't come off from drawing it across the newspaper.

chem9.thumb.JPG.52b8766ee9e18fc7c8e0a15b



HINT: For some of you it may take several coats to get the body looking the way you want it to, be patient and repeat the last few steps over and over till you get to this point.

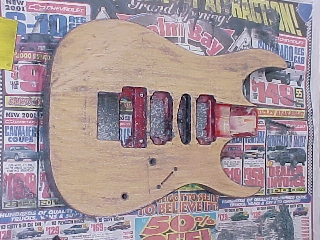

Continue the process of application and scraping paint off the body until it looks pretty much clear of the majority of the paint. Once you think you've got the lot, take a rag or paper towel and clear out the excess from the cavities. Be thorough because the combination of paint and stripper will slowly harden into crusty junk that is very difficult to remove later!

chem10.thumb.JPG.8d465e8cea011878af7173echem11.thumb.JPG.7e4931837ffeb8886c6a0ff



Now flip the body over and replace the top layers of newspaper, disposing of them safely. Before proceeding on the next side, make sure that you have a clean workspace so that you can begin the process from the beginning. Clean brushes, scrapers and a fresh bowl of stripper. The only difference is that you probably not have some stripper on the sides already working its magic for you.

chem12.thumb.JPG.4c241fae83f832cacc3f4d9



Just as before you will have to do the body along the grain of the wood and take it off in several layers. Again, wipe off the final remnants of paint with rags or paper towels, and dispose of them properly. Set your body up on a fresh sheet of newspaper, clean your workspace and get ready to do the sides.

chem13.thumb.JPG.88da3dc73573d165ce4a30fchem14.thumb.JPG.58988aa9c9fb94ca8a932f6

At this point you shouldn't have to brush that much stripper on the body since it has likely been dripping down from the top and bottom! Scrape away any loose paint and contaminated stripper first. Apply fresh stripper around the sides and scrape paint away until your entire body is clear.

chem15.thumb.JPG.c6f03274378c8bb2e1b76eachem16.thumb.JPG.938511bafc2315ee7f225e1



Now comes the easy part! Once you have wiped all the excess paint away from the body you can either lightly sand remaining paint from difficult areas or give your body an acetone bath. That's right - Acetone! It evaporates quickly, doesn't leave a residue, plus it works wonders in removing paint from wood grain. Once it evaporates, the body is safe to handle without gloves. Bear in mind the most important safety aspects of working with Acetone. It evaporates quickly and produces a LOT of hazardous fumes which are both explosive and dangerous to breathe. Read the safety notes on the container!

chem17.thumb.JPG.664cf5f63e6eb1bea7a816c



Here are the basic rules to follow:

  • Pick a place with more than adequate ventilation, your health is more important than the job.
  • Wear your safety gear (skin and eye protection is important with strong chemical strippers which can burn and blind you instantly).
  • Take your time and be sure to let the stripper do its job. Read the instructions!
  • Start with a day where you have plenty of time to complete the work without having to come back to it another day.
  • Keep changing newspapers as you do each step giving you a clean and organised area to work in.
  • Clean your scraper often.
  • Lifting the paint off the body is easier and better than just pushing it around.
  • Be prepared to take as many breaks as needed. This is potentially dangerous work and keeping focus is important in carrying it out safely!
  • Anticipate problem areas and work around them, you can save these for last.
  • Always walk away for awhile if the job becomes to much. Seriously it can wait.

(Editor's note: Never be tempted to blow chemical stripper from out of pickup leg routs with compressed air. Ask me why.)
