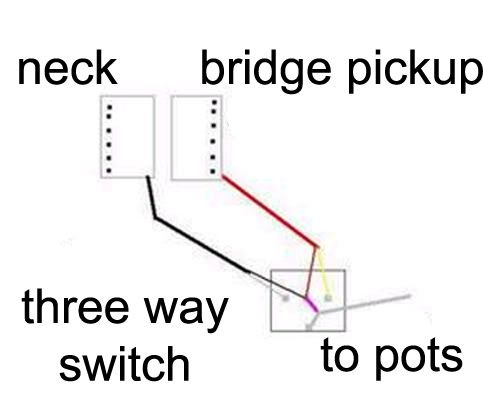

AlGeeEater Posted August 19, 2004 Report Share Posted August 19, 2004 http://img.photobucket.com/albums/v461/gle...chriswiring.jpg The grey wire at the bottom is 2 wires wrapped in one wire insulator. Im not sure what it is? Quote Link to comment Share on other sites More sharing options...
lovekraft Posted August 20, 2004 Report Share Posted August 20, 2004 I'm not either - is that a standard 3-way (Gibson) switch, where and how does the other end of the gray wire hook up, and what's the control setup (2 tones, 2 volumes, or what)? Quote Link to comment Share on other sites More sharing options...
AlGeeEater Posted August 20, 2004 Author Report Share Posted August 20, 2004 Yea its a standard 3 way, its 1 volume and 1 tone and the other end of the graywire hooks up to te bottom and one of the prongs for the volume pot Quote Link to comment Share on other sites More sharing options...
lovekraft Posted August 20, 2004 Report Share Posted August 20, 2004 In that case, it could easily be correct - does it work right? If it's working, I'd consider it done - if it's causing problems, take a look at this diagram: 2 Humbuckers, 3 Way Toggle, 1 Volume, 1 Tone That should make it easier to troubleshoot. Quote Link to comment Share on other sites More sharing options...
AlGeeEater Posted August 20, 2004 Author Report Share Posted August 20, 2004 The ground wire and the wire connecting the pots to the switch are wrapped together in the same colored wire insulator. Atleast thats what i can see from the schemetic. Quote Link to comment Share on other sites More sharing options...
lovekraft Posted August 20, 2004 Report Share Posted August 20, 2004 Yes, that should be shielded cable. Connect the switch end of the shield braid to the terminal marked ground on the switch, and the other end to your ground point (usually the back of the volume pot - solder directly to the case). The insulated wire connects to the middle switch lug and the left lug on the volume pot (if the pot shaft is facing you). Am I helping here, or just digging you a bigger hole? If I'm making things more confusing, speak up, please. Quote Link to comment Share on other sites More sharing options...
AlGeeEater Posted August 20, 2004 Author Report Share Posted August 20, 2004 No everything is clear. All the wiring stuff you just told me is hooked up rite. i just wasnt sure what the 2 wires in the gra yinsulator was, but now i know. Thanks Lovekraft Quote Link to comment Share on other sites More sharing options...
