themetalhankey Posted November 10, 2006 Report Share Posted November 10, 2006 I'm really hoping to make a mockingbird 7 string, if anyone has one please share Quote Link to comment Share on other sites More sharing options...
Guest AlexVDL Posted November 11, 2006 Report Share Posted November 11, 2006 . Quote Link to comment Share on other sites More sharing options...
rsguitar Posted November 11, 2006 Report Share Posted November 11, 2006 Make on yourself... it's easy I agree! Quote Link to comment Share on other sites More sharing options...
SwedishLuthier Posted November 12, 2006 Report Share Posted November 12, 2006 Provide me with a full frontal picture (as large as possible9 and I'll see what I can do. Do you need if for dimentions only? What bridge are you planning for? Pickups? all this info is needed to do a CAD of the guitar Quote Link to comment Share on other sites More sharing options...

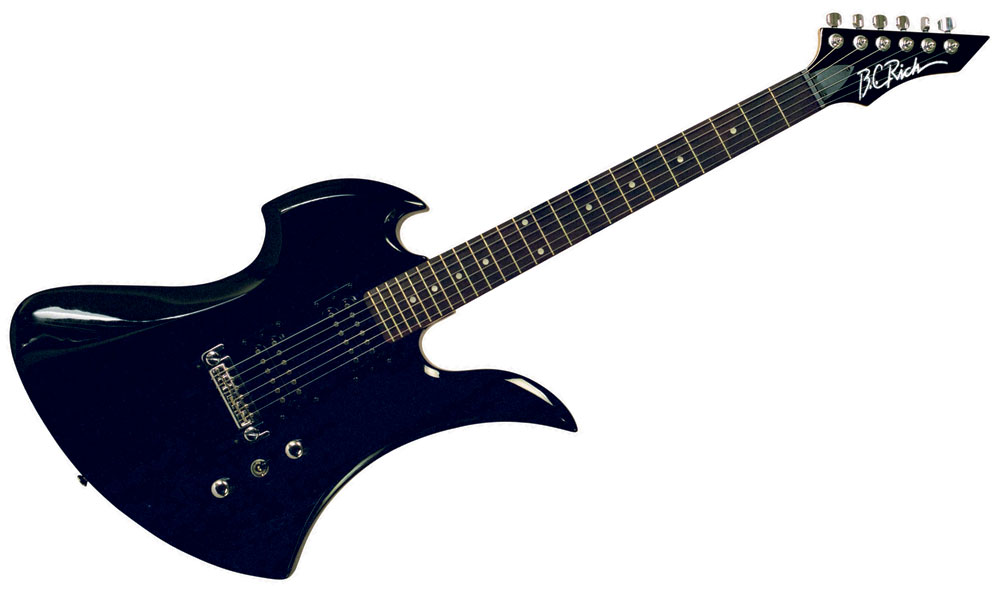

themetalhankey Posted November 12, 2006 Author Report Share Posted November 12, 2006 (edited) Provide me with a full frontal picture (as large as possible9 and I'll see what I can do. Do you need if for dimentions only? What bridge are you planning for? Pickups? all this info is needed to do a CAD of the guitar here is a picture, its going to be a 7 string, not sure what the measurement is but maybe 67 mm, because its 65 mm at the 22nd fret, or if u know please tell me lol sorry i dont know how to make the picture bigger without making the edges of the outline of the mockingbird blurry :S Edited November 12, 2006 by themetalhankey Quote Link to comment Share on other sites More sharing options...
Guest AlexVDL Posted November 13, 2006 Report Share Posted November 13, 2006 . Quote Link to comment Share on other sites More sharing options...
SwedishLuthier Posted November 13, 2006 Report Share Posted November 13, 2006 Thanks. I did a searcha nd came up with a few more. What about the hardware? Humbuckers? two of them? Bridge? When I'm at it I might as well do the complete guitar, so hould you like the 3 on one side (or in your case 4 on one side and 3 on one) head or the straight head shape? Quote Link to comment Share on other sites More sharing options...
themetalhankey Posted November 13, 2006 Author Report Share Posted November 13, 2006 (edited) Thanks. I did a searcha nd came up with a few more. What about the hardware? Humbuckers? two of them? Bridge? When I'm at it I might as well do the complete guitar, so hould you like the 3 on one side (or in your case 4 on one side and 3 on one) head or the straight head shape? 2 pots, 1 switch selector, 27 frets (fretboard angled at the 26th and 27th frets), 2 humbuckers bridge is gonna be a 7 string-thru (cus im too poor to pay for a floyd rose) lol. the headstock is going to be an ibanez headstock unless you can draw or get a picture of a b.c rich neck like so http://www.woodbrass.com/images/woodbrass/...RONZE+COREE.JPG, heres a pic http://en.wikipedia.org/wiki/Image:Ibanez_...ock_pointed.svg id like all 7 machine heads on 1 side plz can you provide me with an outline of the body as soon as possible please because i have to cut out the body soon, only 6 weeks left of school in first semester heh, and its only 40 mins a day Thanks Edited November 13, 2006 by themetalhankey Quote Link to comment Share on other sites More sharing options...
SwedishLuthier Posted November 14, 2006 Report Share Posted November 14, 2006 (edited) I'll try to get you the outlines tonight. In what format do you want it? .dwg? PDF? Are you using imperial or metric measurements? I'm just assuming that you are doing a bolt on (doing the body and neck separately). Is that correct? Do you have a link for the bridge? I really need it for the right dimensions for the neck pocket. You also need to decide the neck width at the nut if I'm gonna be able to help you with this. The neck pocket (or the width of the neck at that area) depends on the string spread at the bridge and the neck and how much "extra" fretboard you would like to have on each side of the strings. And BTW: You are doing it with a 25.5" scale, or? HBs and 27 frets will be pretty narrow, but I'll draw it out for you to have a look at. Ill also test a "stretched out" version of the 6-in-line (7-in-line) head design. Have you had a thought about tuners? Let me know and I'll get started Edited November 14, 2006 by SwedishLuthier Quote Link to comment Share on other sites More sharing options...
themetalhankey Posted November 14, 2006 Author Report Share Posted November 14, 2006 (edited) I'll try to get you the outlines tonight. In what format do you want it? .dwg? PDF? Are you using imperial or metric measurements? I'm just assuming that you are doing a bolt on (doing the body and neck separately). Is that correct? Do you have a link for the bridge? I really need it for the right dimensions for the neck pocket. You also need to decide the neck width at the nut if I'm gonna be able to help you with this. The neck pocket (or the width of the neck at that area) depends on the string spread at the bridge and the neck and how much "extra" fretboard you would like to have on each side of the strings. And BTW: You are doing it with a 25.5" scale, or? HBs and 27 frets will be pretty narrow, but I'll draw it out for you to have a look at. Ill also test a "stretched out" version of the 6-in-line (7-in-line) head design. Have you had a thought about tuners? Let me know and I'll get started .dwg is fine, im using turbocad, and metric measurements please yes bolt on neck, and here is a link for the 7 string thru bridge (uses ferrules) http://www.musiciansfriend.com/product/Sch...itar?sku=513104 width at nut: 49 mm (im just lookin at these 7 string specs: http://www.kyowashokai.co.jp/caparison-eng...ellinger7.html) , width at neck pocket (22nd fret): 66 mm yes 25.5" scale I've had a final thought about the headstock, i want tit to be like so: http://www.guitarsatbmusic.com.au/forum/viewtopic.php?t=1575 , if u can trace that caparison headstock that it, then 4 and 3 on the headstock like so. it'll look nicer This is the type of "angled" fretboard that I mean at the higher frets, http://www.guitarsatbmusic.com.au/caparison/horus.htm and for tuners lets go grovers and remember its a 7 string, 27 frets Thank you very much I've completed the body blank, its 14" x 21", i just need the mockingbird outline to see if it fits or i'd need to add some extra mahogany onto it Edited November 14, 2006 by themetalhankey Quote Link to comment Share on other sites More sharing options...
SwedishLuthier Posted November 14, 2006 Report Share Posted November 14, 2006 I have the outline ready for you. PM me your mail address and I'll send it to you. .DWG there is. I'm using TurboCAD too. Regarding the bridge, I get that you are planning on using a Tune-O-Matic style as on that Schecter. But I need the measurements of the actual bridge. Where are you planning on buying it? I'm nagging you about this just to make sure that everything fits at the end. I would like to paste a bridge into the drawing, draw the nut with the strings in there and see how the fret board looks with a 66mm width @ fret 22. Angled fret board end like that comparison, but both fret 27 and 26 “cut of”, or… The Comparison head is no problem and Grover Imperials, or? Grover Rotomatics I guess. The measurements are 18.59 x 14.75 right now so you will have to add a little or tweak the curves a bit Quote Link to comment Share on other sites More sharing options...
themetalhankey Posted November 14, 2006 Author Report Share Posted November 14, 2006 (edited) I'm planning on buying it at Long and Mcquade, but I'm not really sure how long it will be, can you just eye it up? lol, i can fix it once I get the actual bridge LAST EDIT: and angle the fretboard at the higher frets, with the angled 7 string single coil pickup and 1 7 string humbucker at the bridge. the wood will be: fretboard= maple, neck= maple,mahogany combo, body: honduran mahogany grover rotomatics hmm I still have alot of mahogany, i'll just cut up and glue a piece of mahogany 2" x 20" onto my blank Edited November 15, 2006 by themetalhankey Quote Link to comment Share on other sites More sharing options...
themetalhankey Posted November 15, 2006 Author Report Share Posted November 15, 2006 hey SwedishLuthier, I printed out that mockingbird, i think the one u have sent me is just for 6 strings, now when i trace this onto my wood blank, do i just extend the neck pocket? Like so, I print out the body of the mockingbird. 4 peices of paper. i glue the top left and bottom left together. i glue the top right and bottom right pieces together. i trace the left peice of the mockingbird on my wood blank. i leave a 8 mm space inbetween the right peice of the mockingbird. Your neck pocket is 59.5 mm, and yes you told me to keep a space in there, so this is just im saying to see if you agree with this. The neck pocket of a 7 string should be 66.8mm, as according to warmoth ( http://www.warmoth.com/guitar/necks/necks....=paddle_7string ) Do you agree with this method or disagree? Thanks Quote Link to comment Share on other sites More sharing options...
SwedishLuthier Posted November 16, 2006 Report Share Posted November 16, 2006 (edited) You are right. The neck pocket of the first was baced on a six string guitar. I sent you an updated version last night (european time) were I have changed the neck pocket according to: - the most common string spread I could find for a 7-string T-O-M - the neck width at the nut you specified - a "reasonably" distance between the strings and the edge of the fret board - an equal string to fret board distance along the whole fretboard All of tese factors will affect the neck pocket measurements. You cannot use any measurment and go with them. Thats why you need to have the exact bridge measurements to be 100% sure that things will fit at the end. There are a few loose ends here: Do you have any desired distance string-fret board edge? Would you prefer a sligthly larger distance string-edge at the neck pocket (some do)? These factors will affect how the neck pocket should be done. Edited November 16, 2006 by SwedishLuthier Quote Link to comment Share on other sites More sharing options...
themetalhankey Posted November 16, 2006 Author Report Share Posted November 16, 2006 I will get the 7 string T-O-M bridge this weekend along with 14 ferrules for the back and front of the guitar. Yes sir, 5 mm for the distance between the string to the fret board edge, so i can do easier vibratos and yes I'll go ahead with the slightly larger string-edge at the neck pocket Quote Link to comment Share on other sites More sharing options...
themetalhankey Posted November 16, 2006 Author Report Share Posted November 16, 2006 Using this as my guide on creating the neck, p.s my neck blank is 5 piece maple and mahogany, 30" x 4"x 3/4" thick, http://www.projectguitar.com/tut/anck.htm How long should I cut the piece on the right side of the diagrams there, to equal the lenght of the 7 string headstock? I know I might be going into this too soon/quick, but theres only a little amount of time in school left lol, just about 5 weeks. I am thinking maybe 3" worth of the 30" that i have, cut it on 13degrees, then glue the 2 together to get the angled headstock, then just shave off the excess when I shape the neck. Comments? Quote Link to comment Share on other sites More sharing options...
SwedishLuthier Posted November 16, 2006 Report Share Posted November 16, 2006 5mm is quite huge. I was going wild when doing the first draft and made it 4mm, but 5 is no problem. I'll wait for the measurement from the bridge. Ill finish it as son as I have that. With a head thickness of 13.5 mm (pretty standard, you need to check your tuners) you need at least 250 mm for your head blank for the comparison head and 13 degr head angle. Quote Link to comment Share on other sites More sharing options...
themetalhankey Posted November 16, 2006 Author Report Share Posted November 16, 2006 thats 250 mm with the angle already done on the headstock right? if so, im asking how much of the neck blank shud i cut for the angle as shown in the guide http://www.projectguitar.com/tut/anck.htm Quote Link to comment Share on other sites More sharing options...
themetalhankey Posted November 20, 2006 Author Report Share Posted November 20, 2006 hey swedish luthier, here are the dimensions for the bridge: http://cgi.ebay.com/Tun-O-Matic-Style-Brid...bayphotohosting 84 mm (center to center of post holes) 10.5 mm string spacing 15 mm wide (front to back) 11.4 mm tall at highest point (middle 2 saddles) 10.2 mm tall at outside saddles Quote Link to comment Share on other sites More sharing options...
themetalhankey Posted November 21, 2006 Author Report Share Posted November 21, 2006 (edited) Ok, Now I'm making a checklist as to what to get, heres it so far: 7 string TOM Bridge 7 string humbucker 7 string single coil 7 string tuners 7 string tradtional truss rod (would I even need a special truss rod for 7 string guitar? Or do i just get a regular truss rod?) Fretwire Volume and Tone knobs 3 way switch selector 500k Log Pots Strap Locks Back Neck plate Screws Wiring Metallic paper cover 7 String ferrules Is there anything I'm missing? Edited November 21, 2006 by themetalhankey Quote Link to comment Share on other sites More sharing options...
eddiewarlock Posted November 21, 2006 Report Share Posted November 21, 2006 get a double action truss rod, traditional truss rods are not worth the hassle it is to install and are not as versatile as double rods Quote Link to comment Share on other sites More sharing options...
themetalhankey Posted November 21, 2006 Author Report Share Posted November 21, 2006 that is true. I'll be getting these parts over the weekend Now I just need the measurements for the depths of the cavities of the humbucker and single coil pickups, depths of neck pocket, knobs, bridge , and the back plates for the control cavity Quote Link to comment Share on other sites More sharing options...
themetalhankey Posted November 29, 2006 Author Report Share Posted November 29, 2006 here's the actual pics of the stuff that I've done so far: http://projectguitar.ibforums.com/index.php?showtopic=26875 cheers Quote Link to comment Share on other sites More sharing options...
