Guitar template design


Recommended Posts

What program do you guys like to use to draw out your designs? I would love to get to grips with something where I could do full scale, realistic looking models of possible future creations! Maybe something where I could superimpose the photos of the woods I am using on to the designs. I believe Sketch Up is good? I’m pretty computer savvy although something that doesn’t have an insane learning curve would be cool. Cheers!

Edited by ShatnersBassoon
Link to comment
Share on other sites

I use photoshop... not because it is a great tool, but because I have learned it over the years in other capacities.  Gimp is a good free version of it.  I should really get to know gimp as my ps is outdated and is just a limited version I got ages ago.  Gimp seems to have all the same functionality, but a different gui.

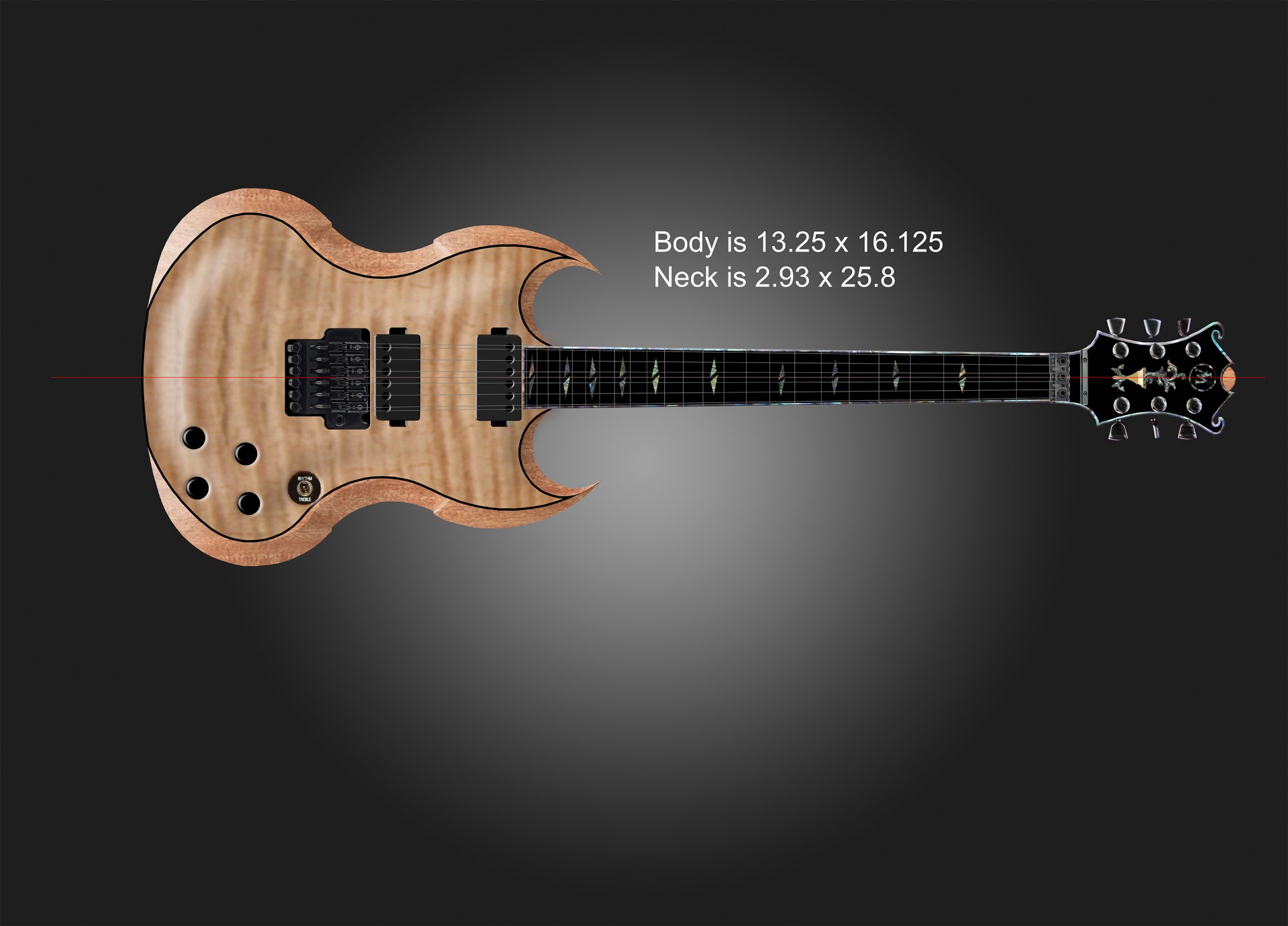

I take pictures of my actual wood and have built a folder of them.  Its nice to be able to play with the images and decide the orientation of said wood.  Still learning new things there, and def a challenge to make the finished build live up to the drawing but:MySG.thumb.jpg.2024e35b69dda2f97ba59c1c8aae8b36.jpg



  • Like 1
Link to comment
Share on other sites

Inkscape is a pretty cool vector drawing package - and is completely free. You can use a path as a mask on embedded bitmaps for mock-ups. It's a bit of a learning curve, as any vector-based drawing package will be. However if you've ever used something like CorelDRAW! you'll be right at home

I've used it to design all sorts of templates, logos & inlays

https://inkscape.org/en/



  • Like 1
Link to comment
Share on other sites

  • 2 weeks later...
On 8/22/2018 at 12:52 PM, mistermikev said:

I use photoshop... not because it is a great tool, but because I have learned it over the years in other capacities.  Gimp is a good free version of it.  I should really get to know gimp as my ps is outdated and is just a limited version I got ages ago.  Gimp seems to have all the same functionality, but a different gui.

I take pictures of my actual wood and have built a folder of them.  Its nice to be able to play with the images and decide the orientation of said wood.  Still learning new things there, and def a challenge to make the finished build live up to the drawing but:MySG.thumb.jpg.2024e35b69dda2f97ba59c1c8aae8b36.jpg



Looks a bit BC Rich'y...except classier ;)

Link to comment
Share on other sites

On 8/29/2018 at 12:27 PM, Norris said:

Inkscape is a pretty cool vector drawing package - and is completely free. You can use a path as a mask on embedded bitmaps for mock-ups. It's a bit of a learning curve, as any vector-based drawing package will be. However if you've ever used something like CorelDRAW! you'll be right at home

I've used it to design all sorts of templates, logos & inlays

https://inkscape.org/en/



Cheers, will check it out :)
